Brake Controller

---

Elecbrakes EB2 – Quick Start Instructions

(For all Margaret River Trailer Hire tippers)

1. Before You Tow

• Ensure your vehicle’s headlights are ON (not on Auto).
• Check all trailer lights are working before leaving.
• Make sure the trailer plug is fully connected to your vehicle.

2. Connecting to the Elecbrakes App

1. Download the Elecbrakes app from the App Store / Google Play.
2. Turn on your vehicle’s headlights (mandatory for EB2 power).
3. Open the app and tap Connect.

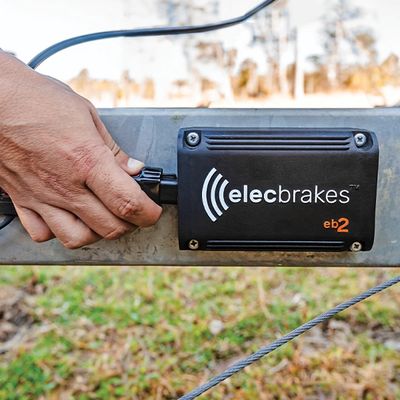

4. Select the device name shown on your screen (MRTH 10x6, MRTH 10x5, MRTH 8x5. Hold your phone near the EB2 brake Controller on the drawbar
5. Wait a few seconds for it to pair.

3. Selecting the Brake Preset

Choose the preset that best matches your load:

• Empty / Light Load — minimal braking pressure
• ¼ Load
• ½ Load
• ¾ Load
• Full Load — strongest braking pressure for heavy loads

Adjust if needed while driving at low speed. Braking should feel smooth and balanced.

4. While Driving

• Trailer brakes should feel even and not grabby.
• If braking feels too strong or weak, adjust the preset in the app.
• Always drive to conditions — heavy loads take longer to stop.

5. Troubleshooting

If the app won’t connect:

• Unplug the trailer plug → wait 5 seconds → reconnect
• Ensure your vehicle headlights are ON
• Make sure Bluetooth is enabled on your phone
• Try restarting the Elecbrakes app

If brakes feel weak:

• Check the preset matches your load
• Confirm trailer plug is firmly connected

If brakes feel too strong:

• Drop down one preset level

6. Safety Requirements

• Never tow without functioning electric brakes.
• Never tow if trailer lights are not working.
• Always secure your load with straps or netting.
• Stop and re-check your connections after the first 5–10 minutes of driving.

Support

For detailed troubleshooting, visit:

www.elecbrakes.com/support
